Woven wire mesh · Custom manufacturer since 2009 · Anping, China
Customize woven wire mesh for any of your projects.
Dongfu Wire Mesh specializes in the custom manufacturing and wholesale of ASTM-compliant woven wire mesh/screen. Our service is to provide you with superior products, stable supply and factory prices that guarantee your benefits.
What Kind of Mesh Do You Need?
Fill in your requirements to your heart’s content and leave the rest to us!
The woven wire mesh products and services we provide include:
- Completely Specifications and Material Grades
- Woven Wire Mesh Rolls
- Woven Wire Mesh Sheets
- Various specifications are customized to suit your special application needs. (Weaving method, mesh size, wire diameter, etc.)
- Cutting To Size, Slitting, Flattening, Mesh Analysis, etc.
- Wire diameter
- 0.016 – 0.5 mm
- Width
- up to 6 m
- Roll length
- up to 50 m
- Monthly output
- 70,000 ㎡
- Standard
- ASTM E2016 – 20
Find Wire Mesh by Materials
Start choosing woven wire mesh according to your needs, find the products that suit your project.
304 · 316 · 310s · 904L · 430 · 2205
Stainless Steel Wire Mesh
Stainless steel alloy is the most used material for making woven wire mesh, And it is widely used in various industries, acceptable cost and high corrosion resistance are its biggest selling points. We provide various stainless steel grades, including 304, 316, 310s, 904L, 430, and duplex stainless steel 2205, among others.
See specifications
Aluminum Wire Mesh
Aluminum wire mesh is a light weight and flexible mesh that is very paper-like and can be easily folded. It also has the characteristics of corrosion resistance and low cost,a common material that has many applications in all walks of life. 6061, 5056 and 5052.
See specifications
Copper and Its Alloy
Copper wire mesh and copper alloy wire mesh also have good corrosion resistance, but their appearance and electrical conductivity conquer everyone. Pure Copper, Brass, and Bronze
See specifications
Rare Pure Metal Wire Mesh
Rare materials are all unique and expensive and are irreplaceable in specific industries and applications. Nickel, silver, titanium, platinum, gold, molybdenum, and tungsten all have their unique properties, and we also offer woven mesh made from these materials.
See specifications
Special Alloy Wire Mesh
In order to meet the requirements of more specific applications, a variety of high-quality alloy metals have been developed. Such as Monel, Inconel, Nichrome, Hastelloy, etc.
See specificationsFactory · Anping, China
Woven Wire Mesh Custom Manufacturer
Provide countless weaving specifications and a variety of materials to meet the wire mesh product needs of customers in various industries.
Dongfu Wire Mesh Limited is a leading metal woven wire mesh manufacturer and supplier based in Anping China. For a long time, we have served customers in many parts of the world, providing high-quality wire mesh products for their industrial, architecture and other large and small project applications.
Our factory was established in 2009, and Dongfu Wire Mesh Limited was registered as a company in 2016. Our products have been exported to more than 50 countries and regions. No matter what materials, specifications or applications you are looking for, you can find the best solution for your needs here. We invite you to browse our website looking for any products and encourage you to feel free to contact us if you have any questions.
About Dongfu
- Factory established in Anping
- 2009
- Countries and regions exported to
- 50+
- Sets of weaving machines
- 30+
- Woven every day
- 2300+ m²
Custom Manufacturing
Regardless of large customers or individual users, Dongfu can customize and manufacture wire mesh products with precise specifications for you, which is our main business.
Multiple Metals Available
We provide many kinds of metal and alloy customization for making woven wire mesh, mainly Stainless Steel Wire Mesh(304, 316), Copper Mesh(Copper, Brass, Bronze), Rare Metal Mesh(Nickel, Titanium, Silver, Tungsten, Molybdenum), and Special Alloy Mesh(Monel, Inconel, Nichrome)
Processing Capacity
To achieve the shape and size required by the customer. We provide professional processing services like cutting, flattening, stamping, etc.
Global Service
We continuously improve our supply capacity and provide the best quality wire mesh product solutions to customers around the world.

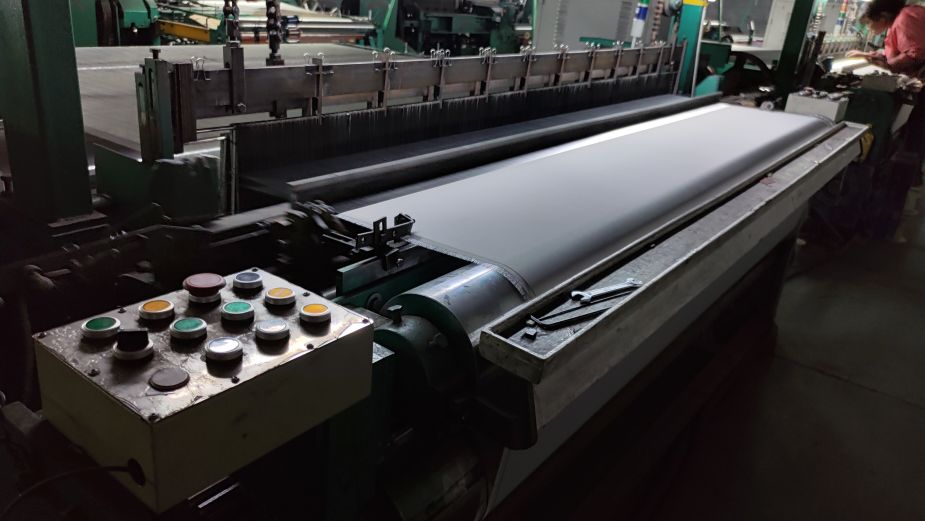

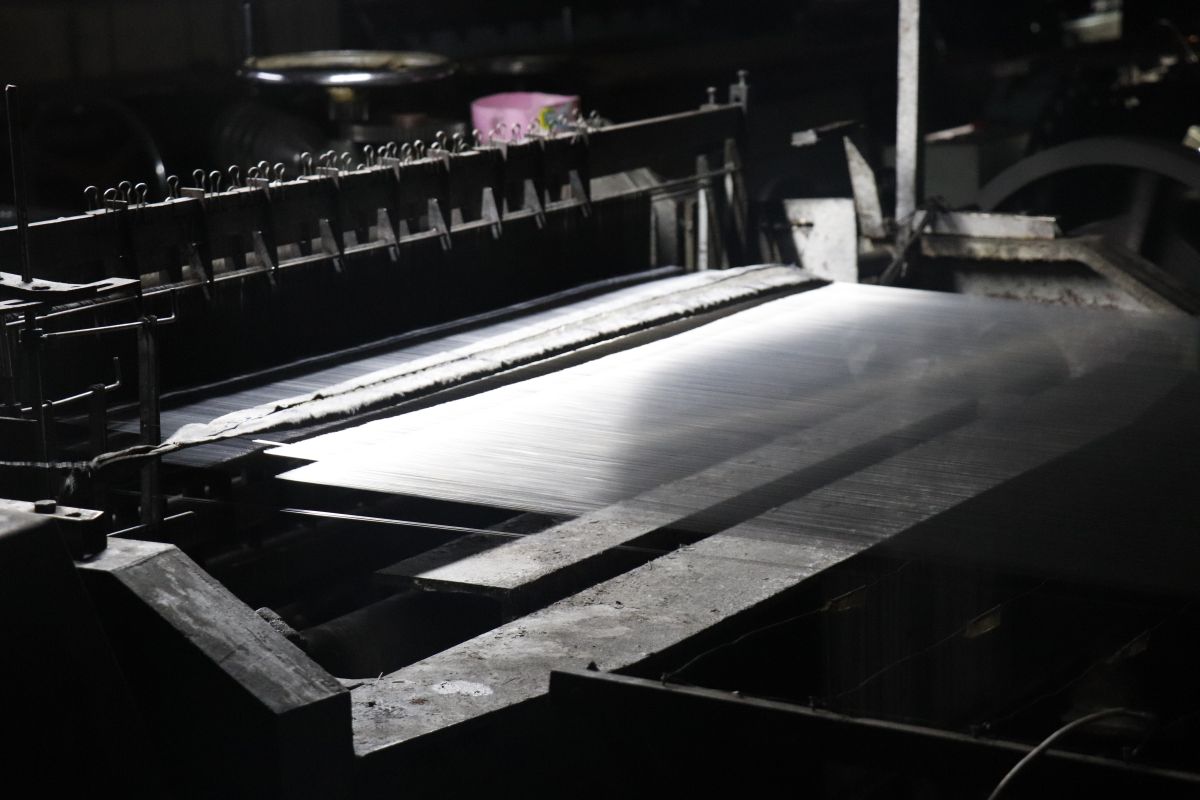

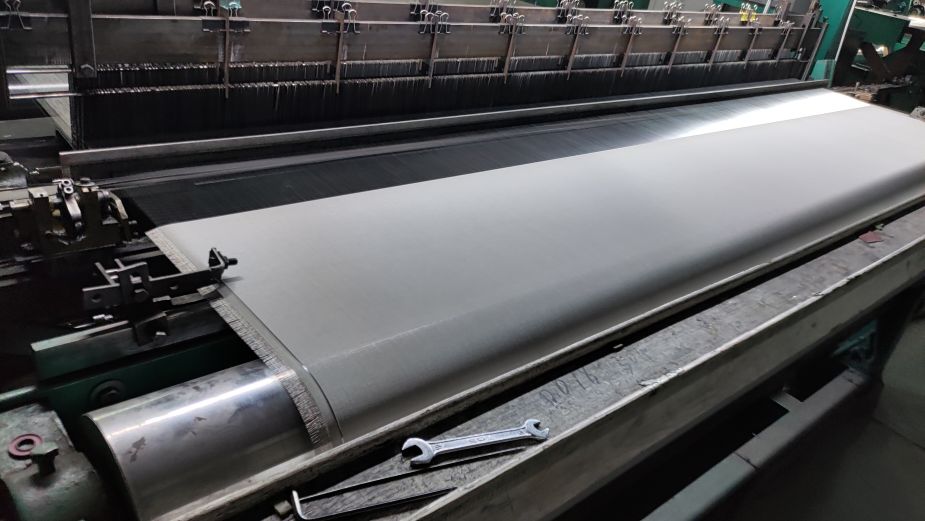

We have a complete production line from wire, machine weaving, deep processing, and testing to packaging.

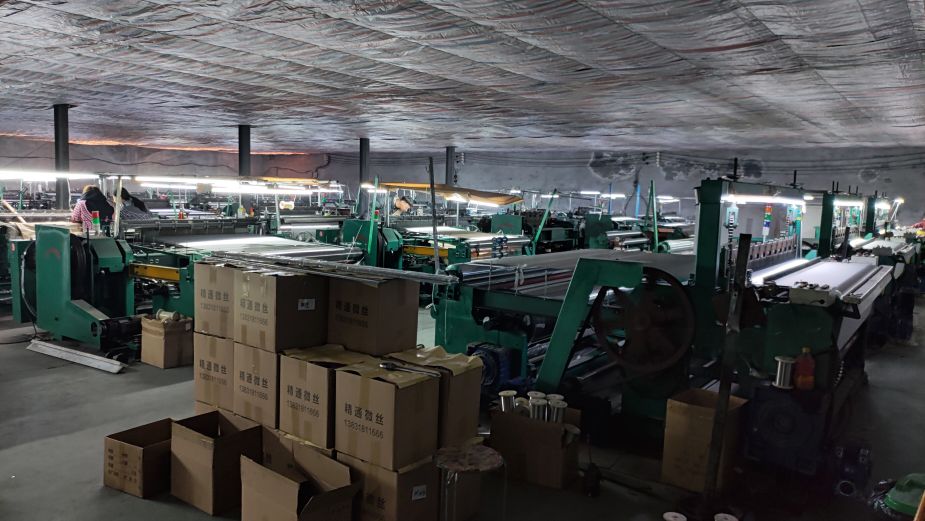

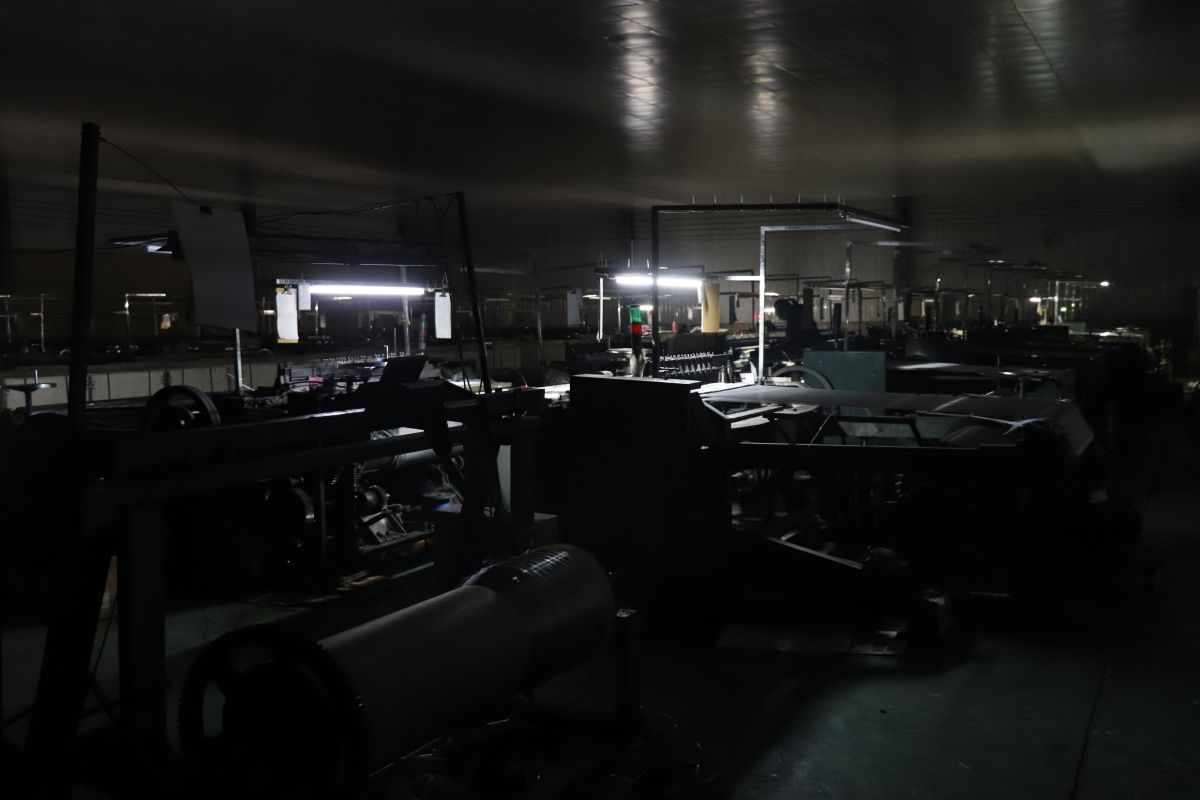

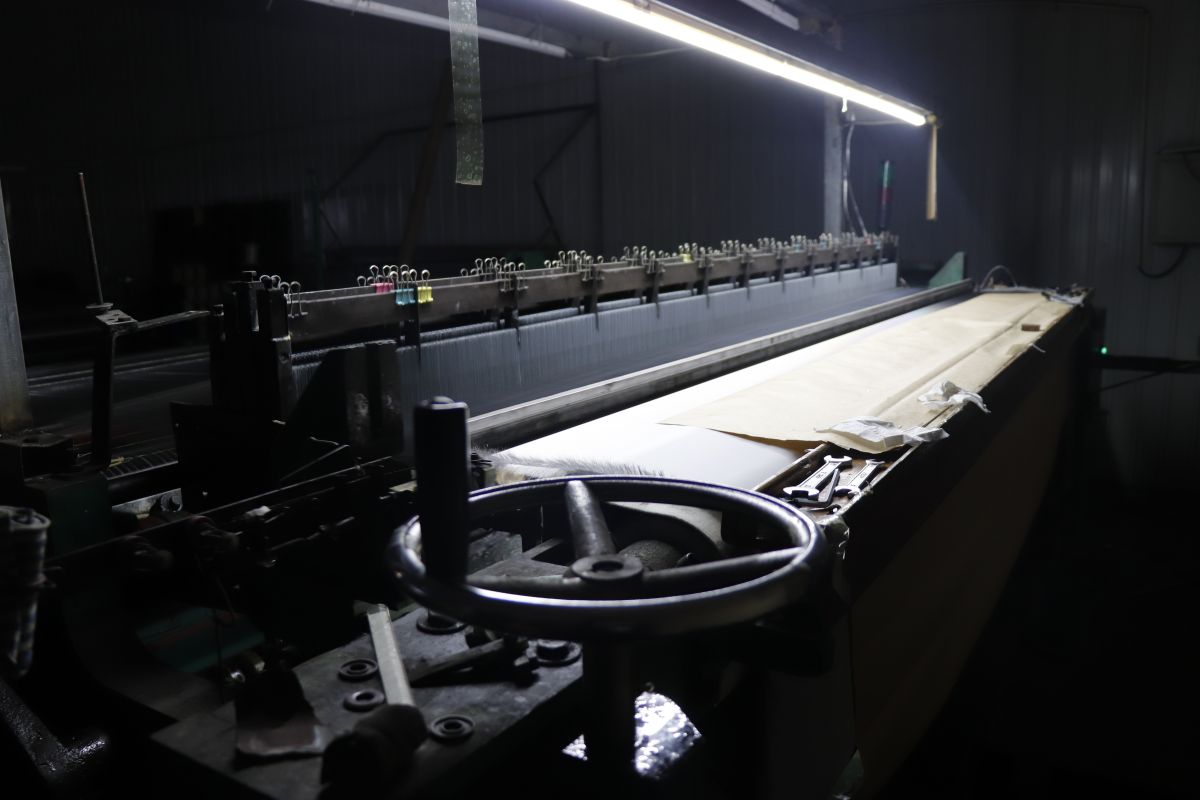

With more than 30 sets of weaving machines, we can produce up to 2300+㎡ per day
5 to 400 mesh, photographed at the same scale
Every square below is a real Dongfu stainless steel sample. Pick the opening your process needs, then send us the mesh count — or the micron size, and we will match it. How mesh count relates to micron size →
-
5mesh - Wire
- 0.6 mm
- Opening
- 4.5 mm
- ≈
- 4500 μm
-
6mesh - Wire
- 0.5 mm
- Opening
- 3.8 mm
- ≈
- 3800 μm
-
8mesh - Wire
- 0.4 mm
- Opening
- 2.8 mm
- ≈
- 2800 μm
-
10mesh - Wire
- 0.35 mm
- Opening
- 2.2 mm
- ≈
- 2200 μm
-
12mesh - Wire
- 0.3 mm
- Opening
- 2.2 mm
- ≈
- 2200 μm
-
14mesh - Wire
- 0.3 mm
- Opening
- 1.5 mm
- ≈
- 1500 μm
-
16mesh - Wire
- 0.27 mm
- Opening
- 1.4 mm
- ≈
- 1400 μm
-
20mesh - Wire
- 0.23 mm
- Opening
- 1.1 mm
- ≈
- 1100 μm
-
24mesh - Wire
- 0.25 mm
- Opening
- 0.8 mm
- ≈
- 800 μm
-
30mesh - Wire
- 0.15 mm
- Opening
- 0.7 mm
- ≈
- 700 μm
-
40mesh - Wire
- 0.14 mm
- Opening
- 0.52 mm
- ≈
- 520 μm
-
50mesh - Wire
- 0.13 mm
- Opening
- 0.43 mm
- ≈
- 430 μm
-
60mesh - Wire
- 0.1 mm
- Opening
- 0.35 mm
- ≈
- 350 μm
-
80mesh - Wire
- 0.09 mm
- Opening
- 0.25 mm
- ≈
- 250 μm
-
100mesh - Wire
- 0.08 mm
- Opening
- 0.18 mm
- ≈
- 180 μm
-
120mesh - Wire
- 0.07 mm
- Opening
- 0.14 mm
- ≈
- 140 μm
-
150mesh - Wire
- 0.06 mm
- Opening
- 0.11 mm
- ≈
- 110 μm
-
200mesh - Wire
- 0.05 mm
- Opening
- 0.08 mm
- ≈
- 80 μm
-
250mesh - Wire
- 0.045 mm
- Opening
- 0.06 mm
- ≈
- 60 μm
-
300mesh - Wire
- 0.04 mm
- Opening
- 0.04 mm
- ≈
- 40 μm
-
400mesh - Wire
- 0.03 mm
- Opening
- 0.03 mm
- ≈
- 30 μm
Samples shown are SS304. The same counts are woven in 316, 316L, 904L, 430, 2205, copper, brass, bronze, aluminium and the rare-metal and special-alloy grades. See all materials →
Dongfu Woven Wire Mesh Overview
We have the most complete range of material grades and sizes to customize woven wire mesh.
- Stainless Steel Grade
- SS304, 316, 904L, 430, 310s, 2205, etc
- Aluminum Alloy
- 6061, 5056, 5052
- Copper
- Pure Copper, Brass, Bronze
- Special Materials
- Nickel, Titanium, Silver, Tungsten, Molybdenum, Monel, Inconel, Nichrome, Hastelloy
- Weave Types
- Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, etc
- Wire Diameter Range
- 0.016-0.5mm
- Width Range
- Maximum 6m, usually the width is 1m
- Length Range
- Maximum 50m, usually the length is 30m/roll
- Mesh Type
- Rolls and sheets are available
- Production Standards
- ASTM E2016 – 20
Rolls or Sheets are Available

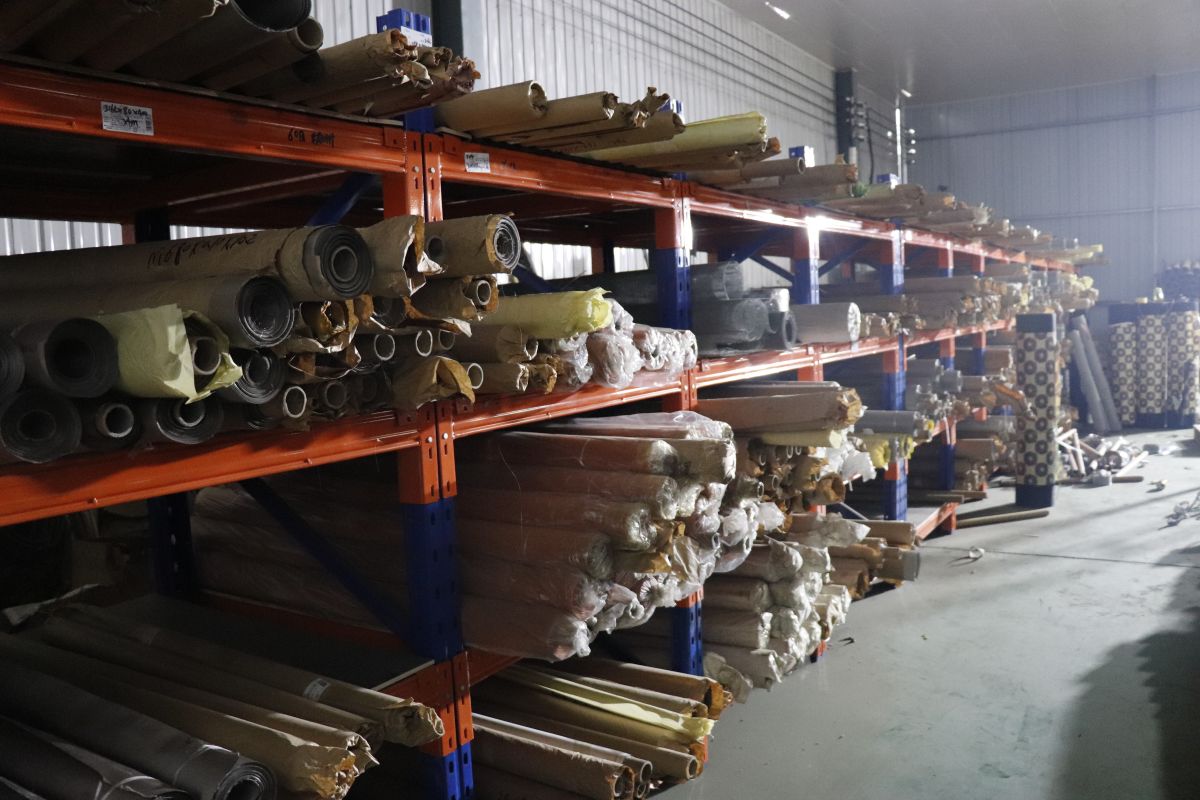

We usually sell stainless steel woven wire mesh in rolls, and can also be cut into sheets of various sizes and shapes according to customer needs.
Fine Woven Wire Mesh
Are you looking for fine wire mesh? Woven wire mesh with smaller and more holes is usually called fine wire mesh. We can manufacture this and classify it into two types, fine and ultra-fine. They are often used in some demanding filtration applications.

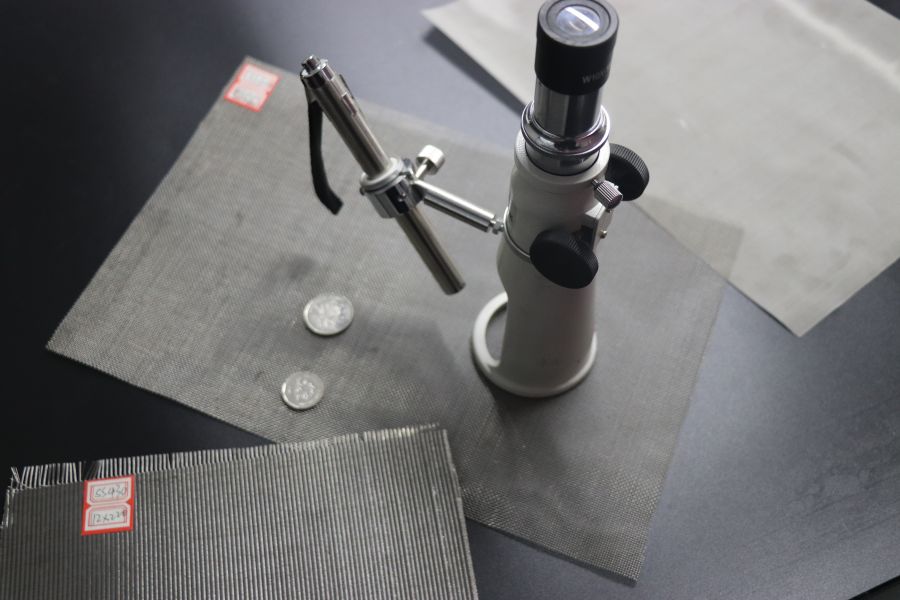

Mesh Analysis

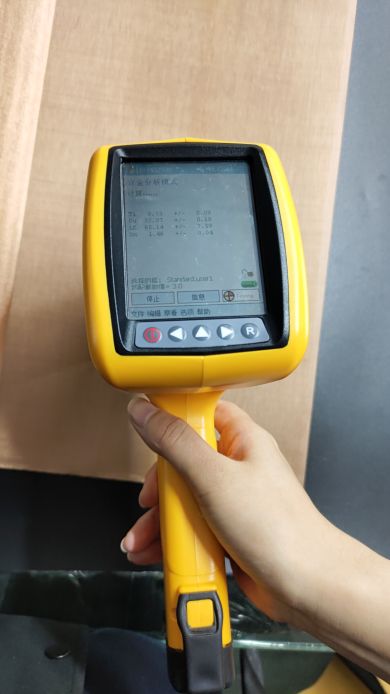

We can provide mesh analysis services, such as material composition, mesh size, wire diameter, etc.

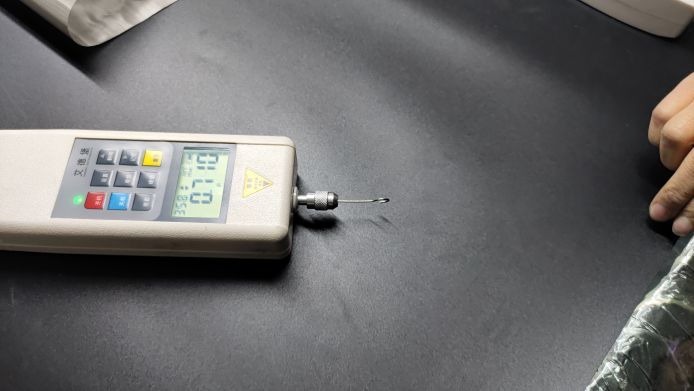

We implement strict quality control and inspection processes to ensure that our products meet our customers’ requirements and standards.
Working with us
- Minimum Order Quantity
Stock Orders: 1 ㎡
Custom Orders: Depends on the specifications
- Delivery Time
Stock Orders: Same-day shipping
Custom Orders: Determined by specifications and quantity
- Productivity
70,000㎡ / Month
- Packaging
Inner kraft paper, outside plastic cloth, put into wooden pallet or case
Ready to customize your woven wire mesh?
Click the button to get in touch with us for a free same-day quote.
Frequently Asked Questions
More questions? See the full FAQ or ask us directly.
When can I receive my quotation?
For most quotations, you can receive the quotation on the same day, depending on whether the requirement information you provide is detailed enough. The more detailed the requirements, the faster and more accurate the quotation will be.
Can you provide samples?
Of course, we can provide samples for any customer.
Can you provide relevant certifications?
Yes, we can provide product certifications and enterprise certifications for you, please get in touch with us.
Can I get a specially customized wire mesh not listed on your website?
Yes, we understand that the information on the website is for reference only and may not meet the needs of all customers. We can provide customized wire mesh products for any customer’s special requirements.
I don't know much about wire mesh, but I have specific requirements, can you give me some suggestions?
No problem, just tell us what you will use it for. We will recommend and discuss the most suitable materials and specifications based on our experience.
I have some samples, but I don't know the specific specifications, can you help me?
Of course, we provide mesh analysis services. You only need to send us your mesh samples. We will analyze them and provide specifications and recommendations.
